Cub CaM

AFTERMARKET KIT

INFRARRED IMAGING

ADVANCED INFRARED CAMERA FOR SITUATIONAL AWARENESS

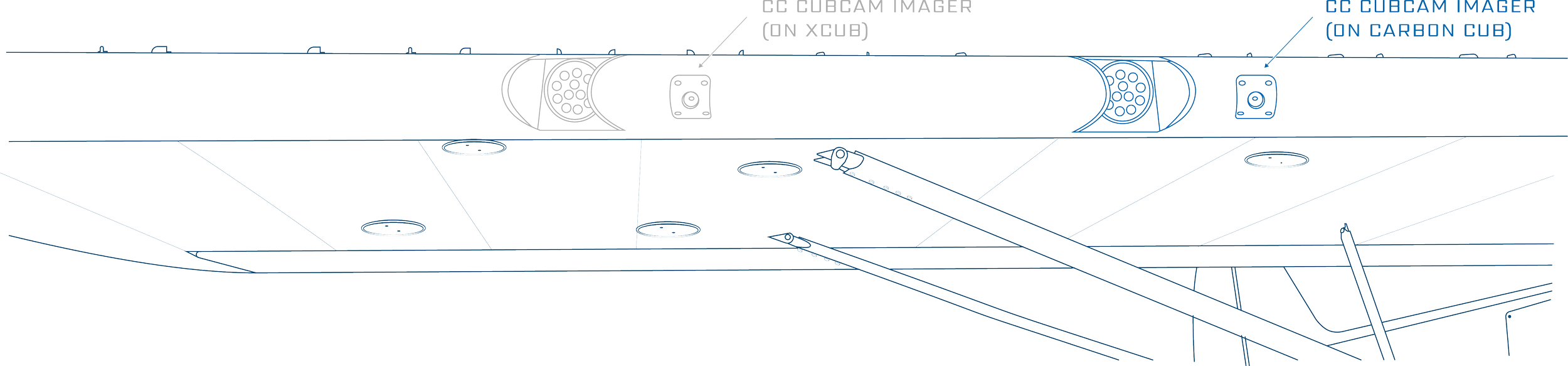

The CubCam is designed as a Non-Required Safety Enhancing Equipment (NORSEE) part for CubCrafters aircraft equipped with a Garmin G3X panel. This thermal infrared imaging system improves flight crew situational awareness during airborne and ground-based maneuvering for object separation in reduced visibility conditions. The imager is mounted on a machined bracket and mated to an exterior plate that matches the interior and exterior shape of the leading edge of the wing - in an almost identical fashion to tab-type stall warning indicators - which provides a level and unobstructed forward view. The CubCam is intended to augment the safety enhancing features of the Garmin Synthetic Vision display.

Aftermarket kit overview

The CubCam Thermal Camera Installation Kit is a turnkey solution designed for the CubCrafter's aircraft owners seeking enhanced situational awareness, night vision capability, and improved safety during low-visibility operations. The kit includes all necessary components and documentation for the seamless installation of a high-performance thermal imaging system into a G3X flight display.

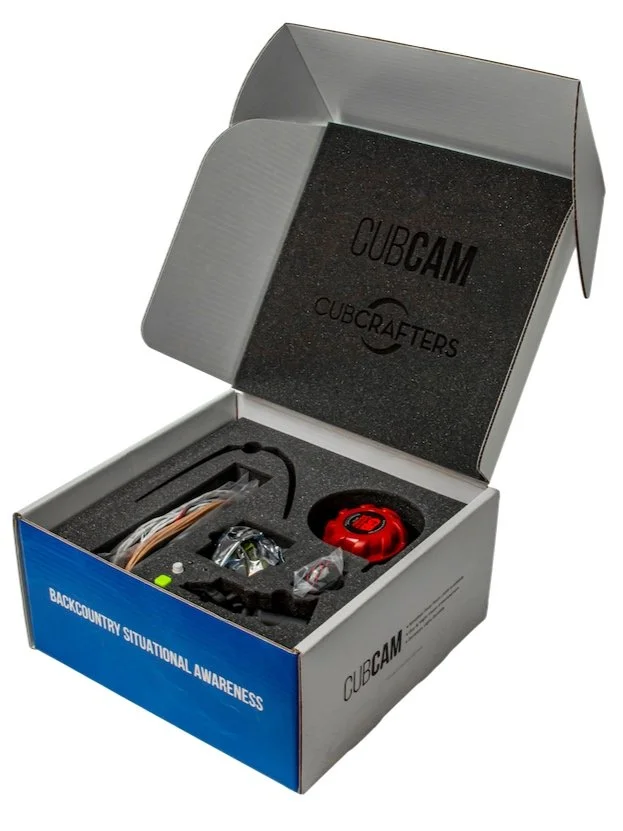

PACKAGE CONTENTS

  • Thermal camera unit
  • Mounting jigs, router mills, and wire fish tape
  • Wiring harness and power supply module
  • Installation manual
  • Aircraft placards

Key Features

  • High-Resolution Thermal Camera: Thermal Long Wave Infrared Camera optimized for detecting heat signatures in darkness, smoke, fog, and other obscured environments.
  • Custom Installation Jigs: Installation cutting jigs designed for a common Dremel rotary tool and optimized to confidently create a perfect cut into the leading edge of the wing.
  • Universal Mounting Hardware: Aircraft-grade aluminum mounting brackets and housings designed for the wing leading edge installation utilizing a wing bay adjacent to the Landing Light infrastructure.
  • Wiring & Harnesses: Pre-configured wiring kits to simplify electrical integration with aircraft avionics and power systems.
  • Installation Manual & Checklist: Step-by-step documentation for certified maintenance personnel, including mounting instructions, wiring procedures, and an avionics programming guide.

Lead Time: 4–6 weeks from order to drop shipment | Sales Channels: HTA Direct, CubCrafters Parts Department

ENHANCED
PILOT VISION

See the Unseen

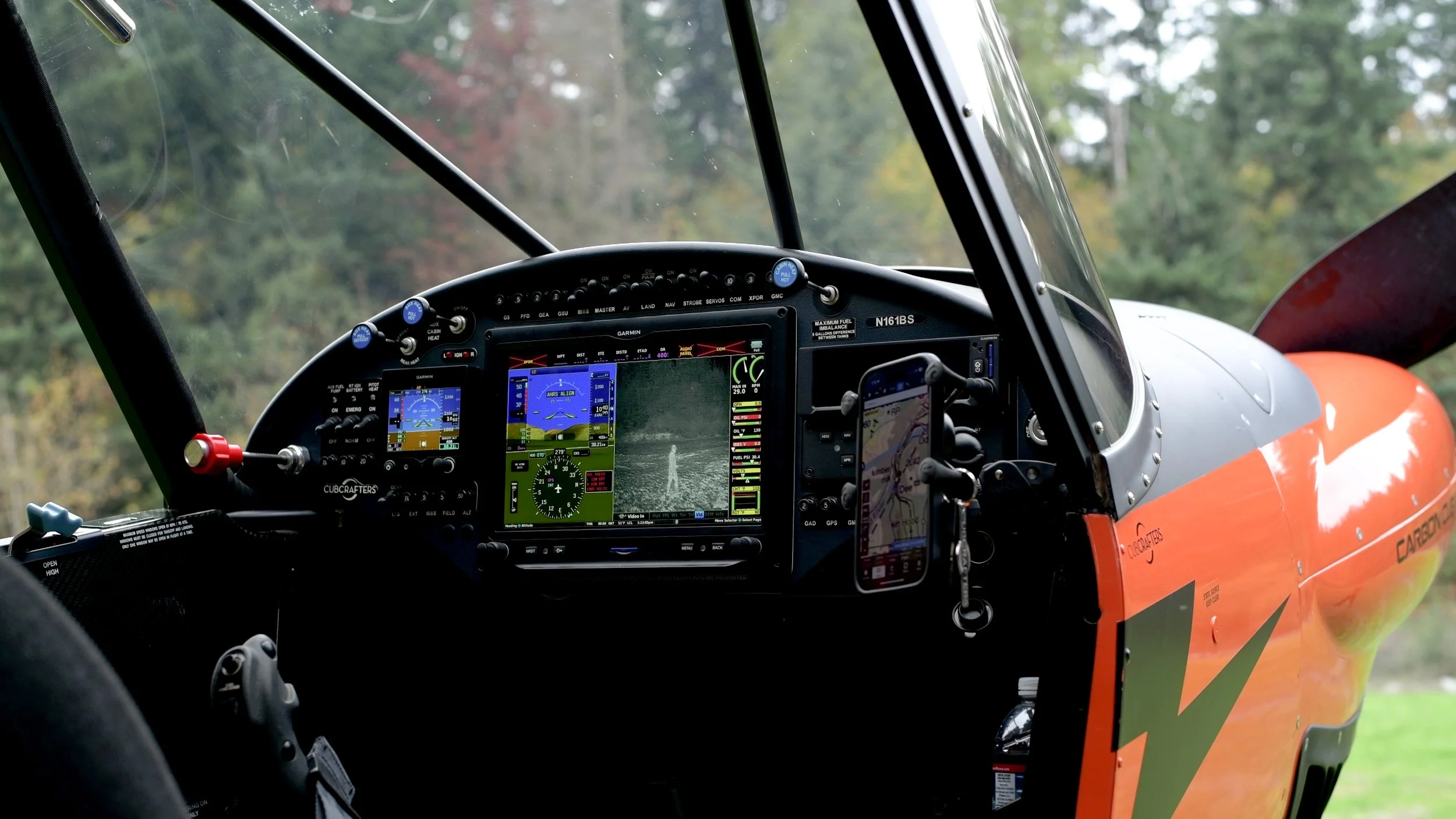

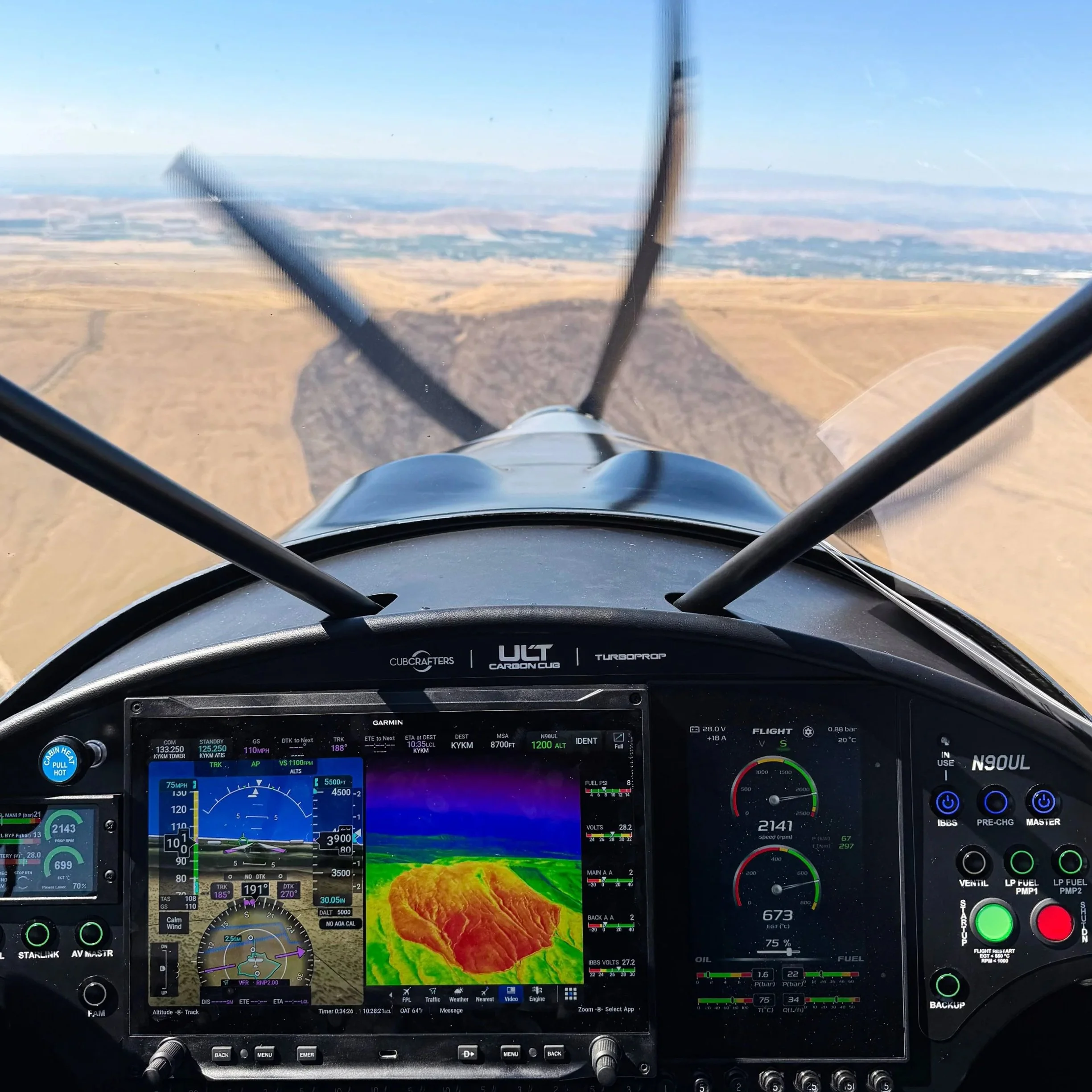

CubCam delivers advanced thermal imaging technology that detects heat signatures invisible to the naked eye. Whether you're flying at night, through fog, smoke, or blowing dust, CubCam enhances your situational awareness by providing clear, real-time infrared visuals. This added visibility improves safety during off-airport landings, wildlife detection, and search and rescue support. View the CubCrafters announcement
